2026-10-21Granulation & Polishing
ZLJ Tooth Granulator Series
A granulator series for processed organic materials, with six listed sizes from ZLJ-40 to ZLJ-150.
ZLJ-40 / ZLJ-60 / ZLJ-80 / ZLJ-100 / ZLJ-120 / ZLJ-150
Key specifications: ZLJ-40
- Capacity (t/h)
- 0.5-1
- Power (kW)
- 18.5
- Overall dimensions (mm)
- 2900×1200×1300
ZLJ organic fertilizer tooth granulator
The ZLJ tooth granulator processes prepared organic material into granules and connects with premixing and downstream finishing equipment.
The listed models have different reference capacities. Confirm the selected model against feedstock, target granule and the complete process route.
Models & specifications
Scroll horizontally to view all models and values.
Model specifications
| Model | Capacity (t/h) | Power (kW) | Overall dimensions (mm) | Reducer |
|---|---|---|---|---|
| ZLJ-40 | 0.5-1 | 18.5 | 2900×1200×1300 | ZD20 |
| ZLJ-60 | 2-3 | 37 | 4500×1700×1300 | ZD25 |
| ZLJ-80 | 3-5 | 45 | 4900×1700×1400 | ZD30 |
| ZLJ-100 | 5-6 | 75 | 5300×1900×1500 | ZD35 |
| ZLJ-120 | 6-8 | 90 | 5700×2100×1700 | ZD40 |
| ZLJ-150 | 8-10 | 110 | 6300×2200×2000 | ZD50 |
Specifications are shown against the listed model and source. Confirm material, moisture, site and power conditions before selecting the configuration or output.
Site, supply and operating conditions
- Forming and finishing
- State formulation, moisture, feed fineness and granule targets. Review screening and finishing against the forming method.
- Installation and interfaces
- Provide layout dimensions, power supply and adjacent equipment details to review handling, connections and maintenance access.
- Supply scope and documents
- Confirm equipment, auxiliary items, installation requirements, drawings and training in the agreed supply proposal.
Technical documents
Choose a brochure by language for technical and purchasing review.
Equipment brochure
Complete brochure
Source editionBrochures retain the information and contacts of their edition. Use this website’s phone and email for current enquiries.
All technical documentsBefore you specify this product
What should an enquiry for ZLJ Tooth Granulator Series include?
Provide compost maturity, crushed particle size and formulation, together with target granules, throughput and finishing route. These conditions define the configuration to be quoted.
Related equipment
Crushing, Screening & Batching
RY-WFS Horizontal Crusher
RY-WFS70 / RY-WFS80
RY-WFS70 and RY-WFS80 are horizontal crushers for organic fertilizer materials. Model-specific rotor, chamber, moisture, capacity and power data support a comparison based on the actual feed.
Specifications & use
Drying, Cooling & Packing
RY-YH2507 Twin-Shaft Premixer
RY-YH2507
Premixes multiple ingredients before granulation or another downstream processing stage.
Specifications & use
Granulation & Polishing

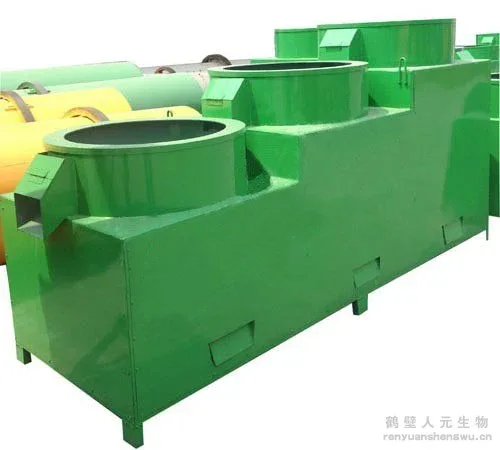

Three-Drum Granule Polisher
