RY-WFS Horizontal Crusher
RY-WFS70 and RY-WFS80 are horizontal crushers for organic fertilizer materials. Model-specific rotor, chamber, moisture, capacity and power data support a comparison based on the actual feed.
RY-WFS70 / RY-WFS80
Key specifications: RY-WFS70
- Capacity (t/h)
- 8–15 t/h
- Power
- 30 kW
- Feedstock moisture range
- 15%–35%
Horizontal organic fertilizer crusher
The RY-WFS horizontal crusher reduces material in an organic fertilizer process and can be connected to feeding, screening or granulation equipment.
Select the listed rotor and power range against feedstock condition and required process flow. Actual output depends on material and continuous feeding.
Models & specifications
Scroll horizontally to view all models and values.
Horizontal crusher model specifications
| Parameter | RY-WFS70 | RY-WFS80 |
|---|---|---|
| Feed particle size (as listed in brochure) | ≥50 mm | ≥50 mm |
| Crushed particle size | 0.5–8 mm | 0.5–8 mm |
| Rotor diameter | 720 mm | 820 mm |
| Crushing chamber length | 700 mm | 800 mm |
| Hammer arrangement (rows × pieces) | 2 × 10 | 2 × 10 |
| Feedstock moisture range | 15%–35% | 15%–35% |
| Main shaft speed | 1420 r/min | 1480 r/min |
| Capacity (t/h) | 8–15 t/h | 10–25 t/h |
| Power | 30 kW | 45 kW |
| Weight | 1200 kg | 1400 kg |
Specifications are shown against the listed model and source. Confirm material, moisture, site and power conditions before selecting the configuration or output.
Site, supply and operating conditions
- Feedstock and operation
- State moisture, feed input, finished output and operating hours. Mark any unknown values in your enquiry.
- Installation and interfaces
- Provide layout dimensions, power supply and adjacent equipment details to review handling, connections and maintenance access.
- Supply scope and documents
- Confirm equipment, auxiliary items, installation requirements, drawings and training in the agreed supply proposal.
Technical documents
Choose a brochure by language for technical and purchasing review.
Equipment brochure
Related content: PDF page 14
Source editionBrochures retain the information and contacts of their edition. Use this website’s phone and email for current enquiries.
All technical documentsBefore you specify this product
Which specifications distinguish RY-WFS70 from RY-WFS80?
Rotor diameter, chamber length, shaft speed, capacity, power and weight differ. The same table lists moisture range and crushed particle size for a complete comparison.
How should horizontal crusher output be matched to screening?
Review crushing output for the material and continuous feeding conditions, then select screening and conveying around the aperture and recycle arrangement. Use the source ranges to compare models.
Related equipment
Crushing, Screening & Batching

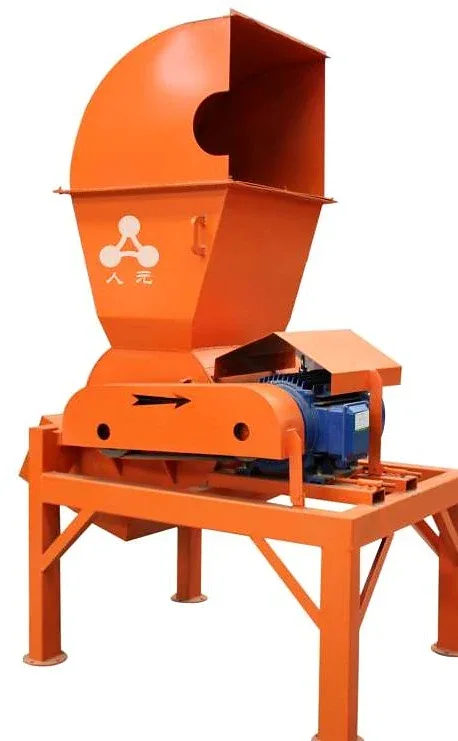

RY-FS60 Vertical Crusher
RY-FS60
A vertical crusher for reducing fermented organic material before screening or further processing.
Specifications & use
Crushing, Screening & Batching
RY-GS Trommel Screen
The trommel screen grades fertilizer material through a rotating screen. Use it after crushing for powder processing or in granule finishing, with apertures and recycle routes matched to the finished-product size.
Specifications & use
Crushing, Screening & Batching

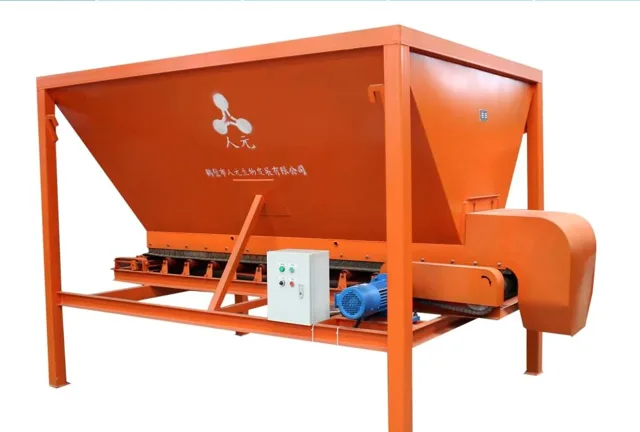

RY-LC Automatic Feeding Hopper
