2026-10-21Drying, Cooling & Packing

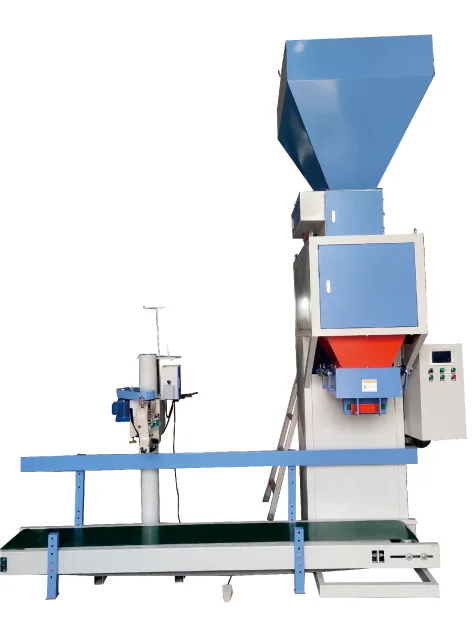

Single-Hopper Granule Weighing and Packing Machine
A gravity-fed single-hopper packer for granules, listed for 5–50 kg bags and 300–400 bags per hour.
Key specifications
- Weighing range
- 5–50 kg
- Weighing speed
- 300–400 bags/h
- Total power
- 2.2 kW
Gravity-fed granule bagging machine
The brochure describes manual bag placement with automatic weighing, conveying and bag sewing. Gravity feeding is specified for this granule-packing configuration.
The brochure table does not state a model. Confirm material flow and bag format before evaluating the listed range.
Models & specifications
Scroll horizontally to view all models and values.
Brochure specifications
| Parameter | Single-Hopper Granule Weighing and Packing Machine |
|---|---|
| Weighing range | 5–50 kg |
| Permissible error | 0.2% |
| Weighing speed | 300–400 bags/h |
| Air pressure | 0.4–0.8 MPa |
| Total power | 2.2 kW |
| Machine height | 2750 mm |
Specifications are shown against the listed model and source. Confirm material, moisture, site and power conditions before selecting the configuration or output.
Site, supply and operating conditions
- Material and bagging
- State flow properties, powder or granules, bag weight and required rate. Check feeding and weighing against the specification table.
- Installation and interfaces
- Provide layout dimensions, power supply and adjacent equipment details to review handling, connections and maintenance access.
- Supply scope and documents
- Confirm equipment, auxiliary items, installation requirements, drawings and training in the agreed supply proposal.
Technical documents
Choose a brochure by language for technical and purchasing review.
Equipment brochure
Related content: PDF page 20
Source editionBrochures retain the information and contacts of their edition. Use this website’s phone and email for current enquiries.
All technical documentsBefore you specify this product
What should an enquiry for Single-Hopper Granule Weighing and Packing Machine include?
Provide granule form, flowability and bag type, together with bag weight, air supply and manual bag placement. These conditions define the configuration to be quoted.
Compare the three bagging options
Scroll horizontally for all columns. Open a model or machine for its own specifications.
| Machine | Feeding | Bag weight | Rate | Total power |
|---|---|---|---|---|
| Single-Hopper Granule Weighing and Packing Machine | Gravity-fed | 5–50 kg | 300–400 bags/h | 2.2 kW |
| Single-Hopper Belt-Fed Automatic Weighing and Packing Machine | Belt-fed | 10–50 kg | 200–300 bags/h | 2.3 kW |
| Dual-Scale Belt-Fed Automatic Weighing and Packing Machine | Belt-fed | 10–50 kg | 450–600 bags/h | 4.4 kW |
Related equipment
Drying, Cooling & Packing

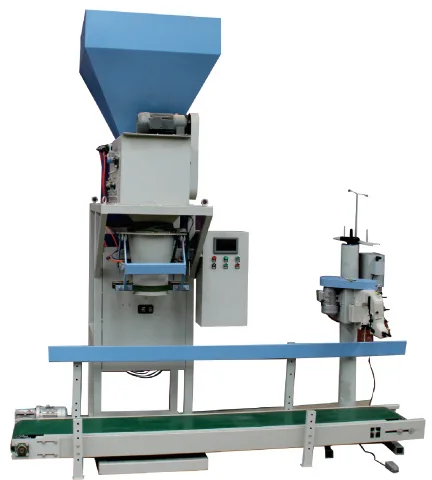

Single-Hopper Belt-Fed Automatic Weighing and Packing Machine
