2026-10-21Granulation & Polishing
RYZL Extrusion Granulator Series
A dry extrusion granulator series listed in RYZL-37, RYZL-55 and RYZL-75 configurations.
RYZL-37 / RYZL-55 / RYZL-75
Key specifications: RYZL-37
- Capacity (t/h)
- 1.3–4
- Power (kW)
- 37
- Granulation rate
- ≥90%

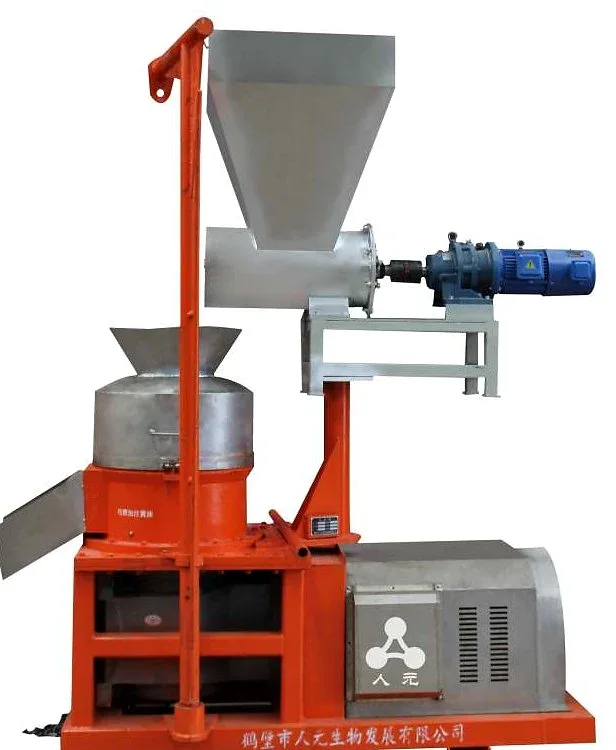

RYZL extrusion granulator
The RYZL extrusion granulator forms granules from prepared powder material through an extrusion process.
The listed models have different power and capacity ranges. Feed moisture, formulation, tooling and downstream cooling and packing affect the process configuration.
Models & specifications
Scroll horizontally to view all models and values.
Model specifications
| Model | Capacity (t/h) | Power (kW) | Granulation rate |
|---|---|---|---|
| RYZL-37 | 1.3–4 | 37 | ≥90% |
| RYZL-55 | 2.0–6 | 55 | ≥90% |
| RYZL-75 | 2.5–8 | 75 | ≥90% |
Specifications are shown against the listed model and source. Confirm material, moisture, site and power conditions before selecting the configuration or output.
Site, supply and operating conditions
- Forming and finishing
- State formulation, moisture, feed fineness and granule targets. Review screening and finishing against the forming method.
- Installation and interfaces
- Provide layout dimensions, power supply and adjacent equipment details to review handling, connections and maintenance access.
- Supply scope and documents
- Confirm equipment, auxiliary items, installation requirements, drawings and training in the agreed supply proposal.
Technical documents
Choose a brochure by language for technical and purchasing review.
Equipment brochure
Related content: PDF page 17
Source editionBrochures retain the information and contacts of their edition. Use this website’s phone and email for current enquiries.
All technical documentsBefore you specify this product
What should an enquiry for RYZL Extrusion Granulator Series include?
Provide moisture, formulation and die requirements, together with power supply, cooling and bagging connections. These conditions define the configuration to be quoted.
Related equipment
Granulation & Polishing

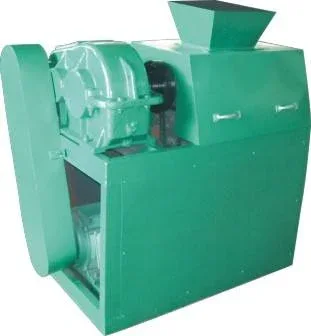

Double-Roller Press Granulator
