RY-LFD Series Crawler Compost Turner
RY-LFD crawler turners mix and aerate composting windrows across several working widths. Start with windrow width, then check site access and the turning requirements of the selected model.
RY-LFD3500 / RY-LFD3000 / RY-LFD2800 / RY-LFD2600 / RY-LFD2500
Key specifications: RY-LFD3500
- Turning width
- 3500 mm
- Maximum reference capacity
- 1029 m³/h
- Rated power
- 132 kW

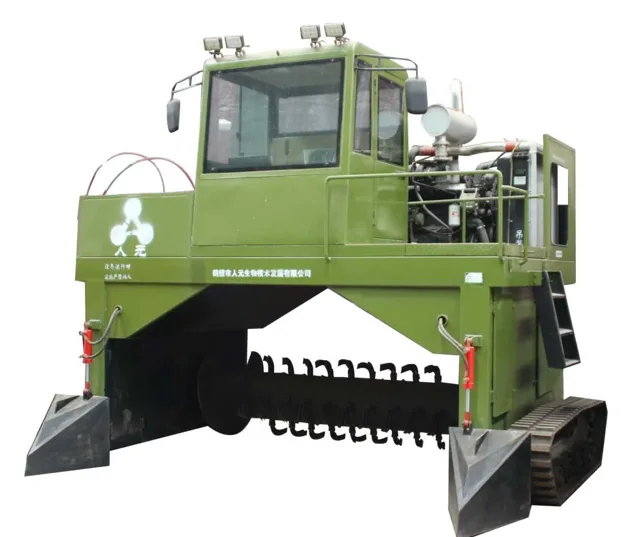

RY-LFD crawler compost turner
The RY-LFD series turns and mixes organic material in windrow fermentation areas. Multiple model sizes are listed for different working widths and site layouts.
Choose a model by the verified specification row and the available turning space. A dash in the source data means that parameter was not listed in the adopted baseline.
Models & specifications
Scroll horizontally to view all models and values.
Series specifications
| Parameter | RY-LFD3500 | RY-LFD3000 | RY-LFD2800 | RY-LFD2600 | RY-LFD2500 |
|---|---|---|---|---|---|
| Turning width | 3500 mm | 3.0 m | 2.8 m | 2.6 m | 2.5 m |
| Maximum reference capacity | 1029 m³/h | 819 m³/h | 705.6 m³/h | 655.2 m³/h | 577.5 m³/h |
| Rated power | 132 kW | 113 kW | 90 kW | — | — |
| Travel speed | — | — | — | 5–7 m/min | 5–7 m/min |
| Turning radius | — | — | — | 3450 mm | 3220 mm |
| Overall dimensions | 2900×4750×3400 | 2800×4170×3250 | 2800×4170×3250 | — | — |
Specifications are shown against the listed model and source. Confirm material, moisture, site and power conditions before selecting the configuration or output.
Site, supply and operating conditions
- Composting area and material
- Describe windrow or trough conditions, material state and operating plans. Check working dimensions and access for the selected model.
- Installation and interfaces
- Provide layout dimensions, power supply and adjacent equipment details to review handling, connections and maintenance access.
- Supply scope and documents
- Confirm equipment, auxiliary items, installation requirements, drawings and training in the agreed supply proposal.
Technical documents
Choose a brochure by language for technical and purchasing review.
Equipment brochure
Related content: PDF page 9
Source editionBrochures retain the information and contacts of their edition. Use this website’s phone and email for current enquiries.
All technical documentsBefore you specify this product
Should I choose the widest RY-LFD model available?
Match the machine to the windrow and access route before comparing reference capacity. A wider working width changes the space needed on site.
What site information is useful for RY-LFD2500 and RY-LFD2600?
Provide the space at windrow ends and between access lanes, then review the route against each model’s listed turning radius and travel speed.
Related equipment
Composting & Fermentation

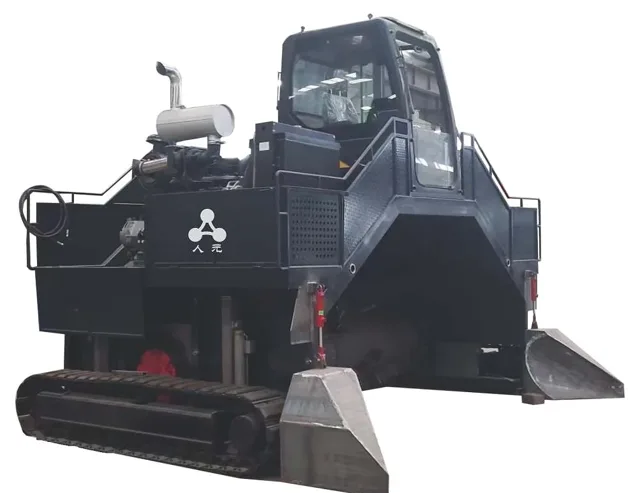

Fully Hydraulic Crawler Compost Turner
