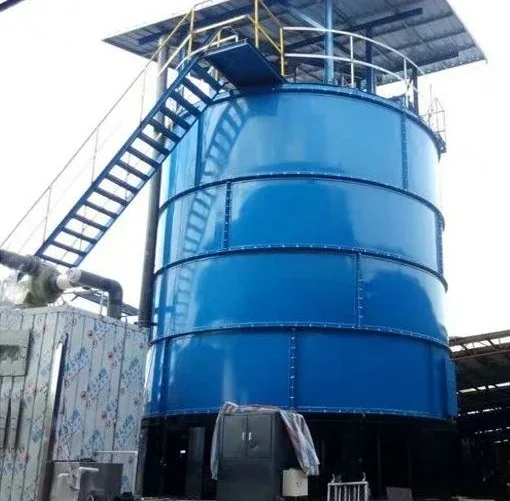

Intelligent Aerobic Fermentation Tank

The aerobic fermentation tank combines a chamber, lifting feed system, aeration, hydraulics and biological odor treatment for manure and other organic materials. Compare chamber volume and the stated treatment quantity separately across the four sizes.

RY-ZNHBD / RY-ZNHBC / RY-ZNB / RY-ZNA

Discuss selectionModels & specifications

Key specifications: RY-ZNHBD

Fermentation chamber volume
116 m³
Tank height
10–11 m
Tank diameter
5.5 m

Aerobic fermentation tank

The tank is configured for aerobic treatment of livestock manure and other organic feedstocks. Its listed assemblies include the fermentation chamber, air supply, hydraulic loading, heating, odor treatment and controls.

Feedstock moisture and bulking-material conditions should be assessed before loading. Select the model and downstream process using the project-specific material and product target.

Models & specifications

Scroll horizontally to view all models and values.

Sizes and configuration

ParameterRY-ZNHBDRY-ZNHBCRY-ZNBRY-ZNA
Fermentation chamber volume116 m³90 m³70 m³32 m³
Loading hopper volume1.5 m³1.5 m³1.5 m³1.0 m³
Upper air blower2.2 kW2.2 kW--
Lower air blower18.5 kW12.5 kW11 kW7.5 kW
Hydraulic power station7.5 kW7.5 kW7.5 kW4 kW
Hydraulic oil heater4 kW4 kW4 kW2 kW
Loading port motor0.75 kW0.75 kW0.75 kW0.37 kW
Auxiliary heater12 kW12 kW4 kW2 kW
Odor treatmentBiological deodorizationBiological deodorizationBiological deodorizationBiological deodorization
Deodorization fan4 kW4 kW1.5 kW1.5 kW
Deodorization water pump0.37 kW0.37 kW0.37 kW0.37 kW
LubricationCentralized lubricationCentralized lubricationCentralized lubricationManual lubrication
Main unit weight30 t26 t23 t11 t
Material volume at 65% moisture15 m³10 m³7 m³3 m³
Tank height10–11 m10–11 m6.5–7 m6.5–7 m
Tank diameter5.5 m5.5 m4.5 m3 m

Specifications are shown against the listed model and source. Confirm material, moisture, site and power conditions before selecting the configuration or output.

Site, supply and operating conditions
Composting area and material
Describe windrow or trough conditions, material state and operating plans. Check working dimensions and access for the selected model.
Installation and interfaces
Provide layout dimensions, power supply and adjacent equipment details to review handling, connections and maintenance access.
Supply scope and documents
Confirm equipment, auxiliary items, installation requirements, drawings and training in the agreed supply proposal.

Technical documents

Choose a brochure by language for technical and purchasing review.

Brochures retain the information and contacts of their edition. Use this website’s phone and email for current enquiries.

All technical documents

Before you specify this product

Is chamber volume the same as daily throughput?

The source table separates chamber volume from treatment quantity. The latter is stated at 65% moisture without a time period; confirm the operating cycle during project review.

What processing can follow the fermentation tank?

Discharged material can enter fertilizer finishing. Powder and granular products require different combinations of crushing, screening, batching, granulation and bagging, selected for the discharge condition.
